Webserver

If you start LvCmd a small embedded web server is started as well. You can see it after the LvCmd start:

Web     1    V 15:14:32.6811525 : Webserver Port 8080 available = True

Web     1    V 15:14:32.6811525 : Starting embedded LogView Studio Webserver ...

Web     1    V 15:14:32.6821526 : Webserver IP Addresses [PDBDSCHN3] ...

Web     1    V 15:14:32.6826527 :   IP V4 : 192.168.30.139, 192.168.232.1, 192.168.130.1

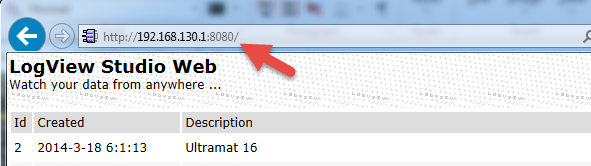

So pick up one of the IP addresses and enter it in your web browser like this: http://<IP>:8080

clip0099



If all works well you will get a list of available datasets. Click on a dataset und you will get a chart view:

clip0100



Result:

clip0101



At the moment the website is very basic. But it will get more features in the next releases.
